METART-WW16-Shopfitting Designer Wire Mesh
Material: Stainless Steel Grade 201,304 and 316
Type: Rigid Decorative Wire Mesh
Opening Area: 42%
Estimated Square Meter Weight: Approx 8.2kg/平米
Finish: PVD Titanium Plated-Gold
Screen Width: Custom made
Screen Length: Custom made

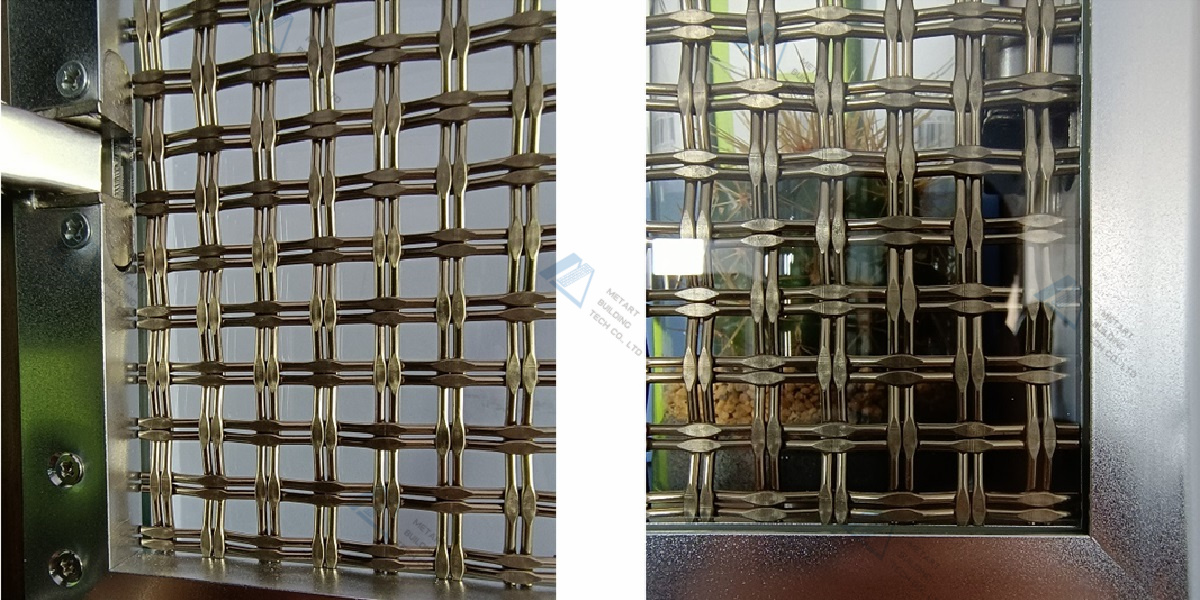

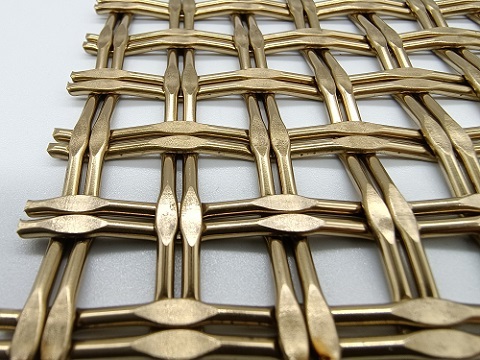

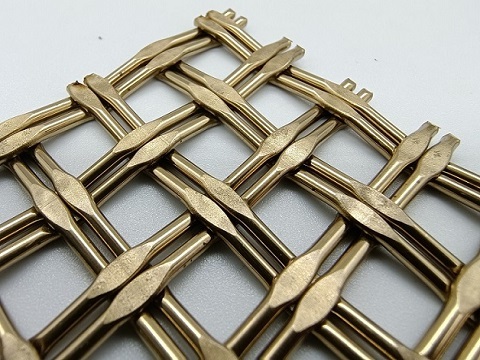

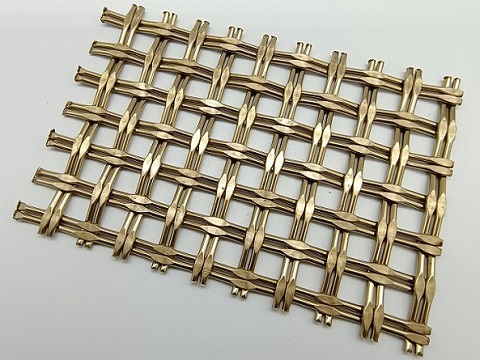

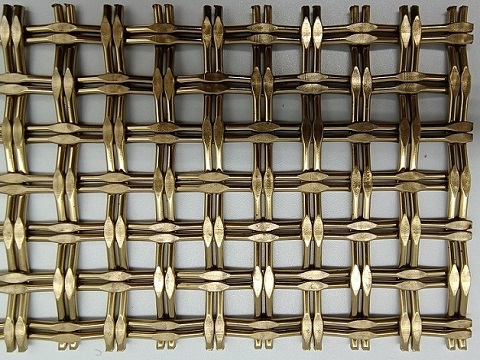

This is a sample of the woven wire pattern METART-WW16 that has been titanium gold PVD-plated. which is the WW15 reinforcement version.
The single wire's diameter was left at the same size for this ornamental stainless steel mesh as it was for World War 15, but the hole's diameter is much smaller.
This particular wire mesh pattern is stiffer than WW15 in this instance. This stainless steel creative mesh is consequently becoming more and more common as balustrade infill mesh panels, balcony fencing mesh, commercial railing wire mesh, building facade cladding mesh, wall cladding metal mesh, security door decorative grilles, fancy wine cabinets door mesh inserts, etc.
Specification Table.
|
Material |
Stainless Steel 201, 304 or 316 |
|
Type |
Rigid mesh |
|
Wire Diameter (Single wire) |
2mm |
|
Clear Hole Size |
7.2mm |
|
The total thickness of the fabric |
2.8mm |
|
Opening Area |
42% |
|
Block out |
58% |
|
Estimated Square Meter Weight |
8.2kg/㎡ |
|
Finish |
vacuum titanium golden plated |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
