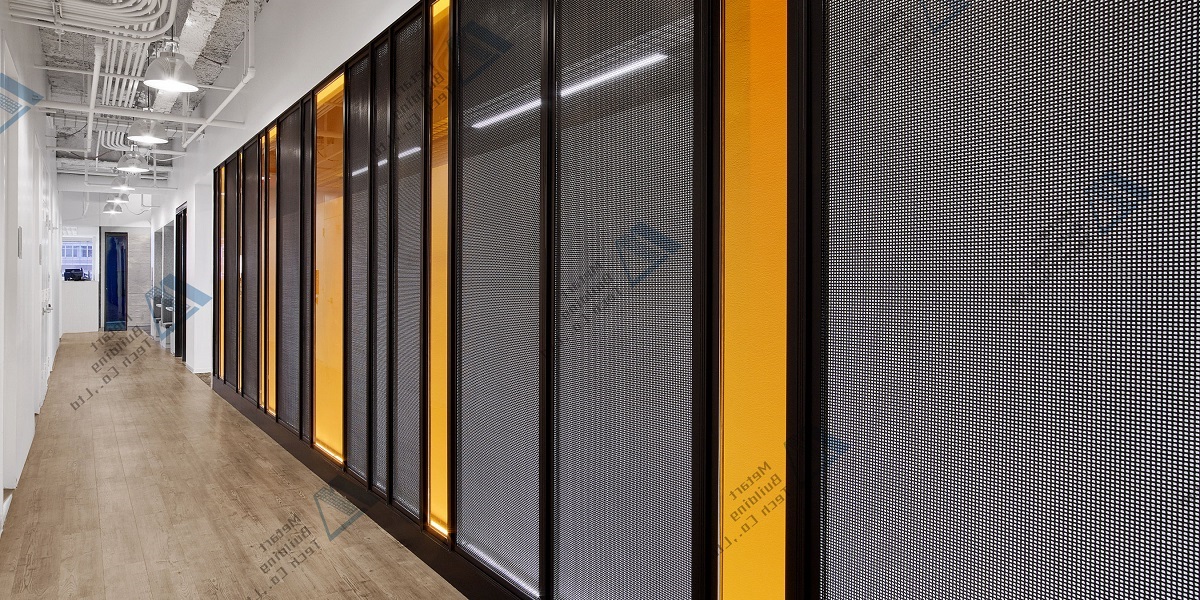

hello@metartmesh.comMETART-WW05-31204-Partition Screen Infill Mesh
Material: Stainless Steel Grade 201, 304 or 316.
Type: Rigid Decorative Wire Mesh
Opening Area: 33%
Estimated Square Meter Weight: Approx 7.6kg/㎡
Finish: Mill Finish
Screen Width: Custom made
Screen Length: Custom made
Another example of a regular pain-woven flat wire design is denoted by the code name METART-WW05-31204.
#31204 indicates a flat wire strip of 3.0 millimetres, a wire thickness of 1.2 millimetres, and a clear hole size of 4 millimetres.

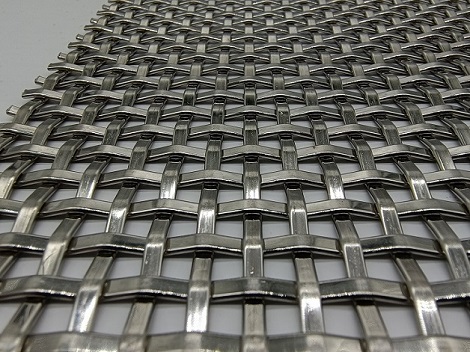

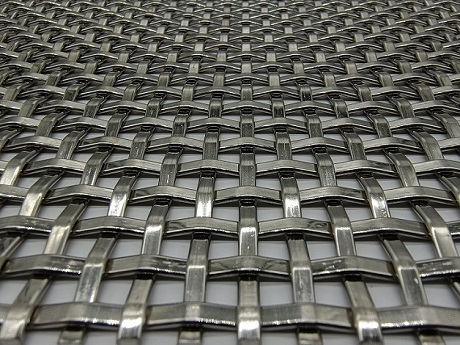

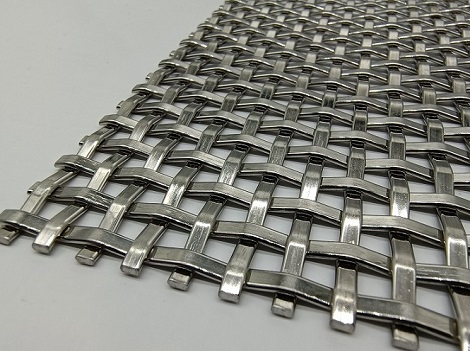

These photographs of the show feature mill-finished wire mesh that does not have a coating.
Depending on the specifications you provide for this design, METART may be able to provide additional colour plating services like as powder coating, painting, PVD plating, and others.
This wire mesh material is an excellent option for the mesh panel on your kitchen cabinet door or the infill mesh for the door of your wine cabinet.
Additionally, it has the potential to be a wonderful material for laminated glass mesh, which may be used for either decorative or protective purposes.
Specifications Table.
Material |
Stainless Steel Wire Strips Grade 201,304 or 316. |
Type |
Rigid Decorative Wire Mesh |
Flat Wire Strip(WidthxThickness: |
3x1.2mm |
Clear Hole Size |
4mm |
Overall thickness of the fabric |
2.5mm |
Opening Area |
33% |
Privacy Rate |
67% |
Estimated Square Meter Weight |
7.6kg/㎡ |
Finish |
Stainless steel mill finish. |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
Please refer to the following table for all the specifications of METART WW05
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Square Meter Weight |
Overall Thickness |
Metart 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG |
3.4mm |
Metart 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG |
3.2mm |
Metart 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG |
3.0mm |
Metart 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG |
2.0mm |
Metart 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG |
2.5mm |
Metart 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG |
2.4mm |
Metart 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG |
2.4mm |
Metart 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG |
2.4mm |
Metart 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG |
3.0mm |
Metart 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG |
2.0mm |
Metart 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG |
2.0mm |
Metart 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG |
1.6mm |
Metart 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0 KG |
1.6mm |
Metart 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG |
3.6mm |
