hello@metartmesh.comDecorative Stainless Steel Wire Mesh-METART-WW19M
Raw Material: SS201, SS304, SS316
Mesh Type: Half Rigid Decorative Wire Mesh
Opening Rate: 36%
Weight: Approx 4.8kg/Square Meter
Finish: Coffee Brown Painted
Sheet Width: Custom made
Sheet Length: Custom made

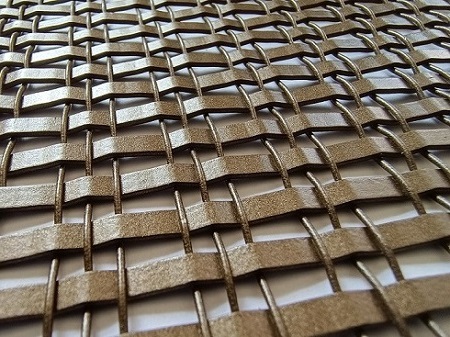

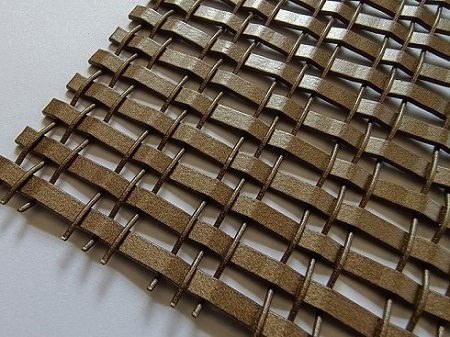

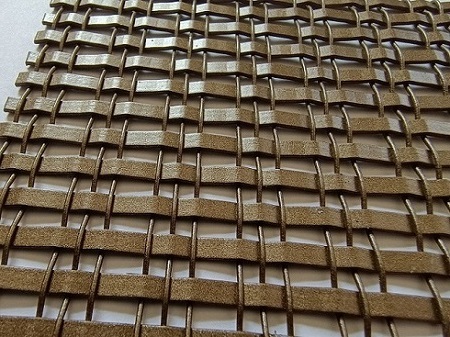

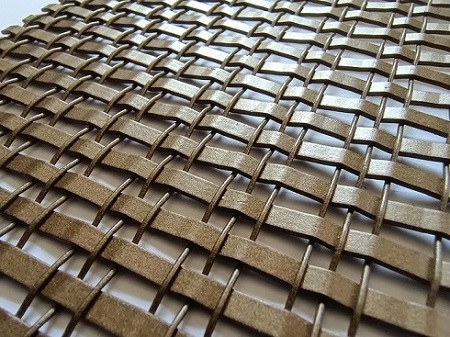

This is an exhibition of a coffee-brown painted decorative wire mesh pattern METART-19M.
Please Refer to the Specification Table.
Raw Material |
Stainless Steel 201, 304,316 |
Mesh Type |
Half Rigid Decorative Wire Mesh |
Wire Strip (Width x thickness) |
4x1mm |
Wire Rod Diameter |
0.95mm |
Wire Strip Pitch |
8mm |
Wire Rod Pitch |
4.4mm |
Wire Rod Group Pitch |
15.8 |
Overall thickness of the fabric |
2.4mm |
Opening Area |
36% |
Privacy Rate |
64% |
Estimated Square Meter Weight |
4.8kg/㎡ |
Finish |
Coffee Color Painted Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
