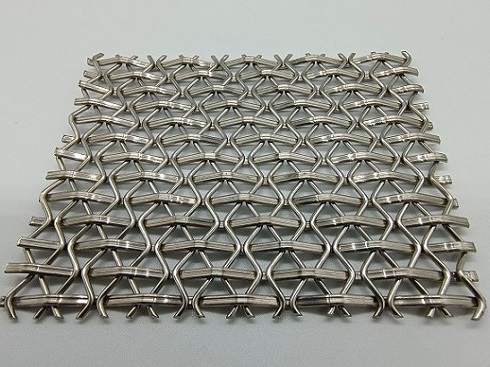

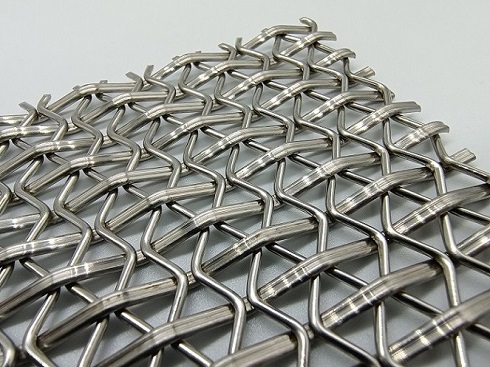

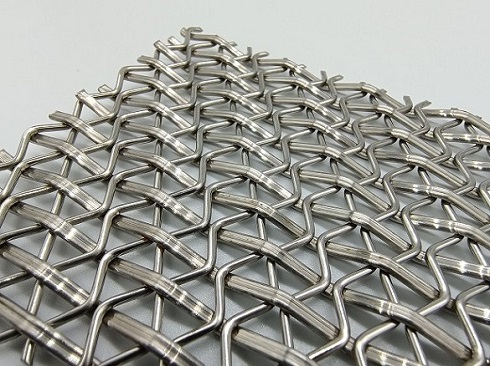

Stainless Steel Designer Wire Mesh-METART-WW17MW
Material: Stainless Steel Grade 201,304,316
Type: Rigid Decorative Wire Mesh
Opening Area: 35%
Estimated Squar Meter Weight: Approx 6.3kg/㎡
Finish: Mill Finish
Screen Width: Custom made.
Screen Length: Custom made.
METART-WW17MW is the Medium-Weighted version of pattern #WW17. Compared to its original version, the only difference is that the waved round wire is smaller. The weight is reduced, but this architectural stainless steel wire mesh is still very rigid and commonly used in the building and decoration industry.
Specification Table.
|
Material |
Stainless Steel Grade 201,304,316. |
|
Type |
Rigid Decorative Wire Mesh |
|
Round Wire Diameter (Single wire) |
1.45mm |
|
Flat Wire Strip(Width x thickness): |
2.4x1.2mm |
|
Flat Wire Strip Pitch |
6.5mm |
|
Round Wire Hole Pitch |
10.5m |
|
Overall thickness of the fabric |
3.8mm |
|
Opening Area |
35% |
|
Privacy Rate |
65% |
|
Weight |
6.3kg/Square Meter |
|
Finish |
Stainless Steel Mill Finish. |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
|
Customized specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
