METART-WW26-PVD Gold Titanium Plated Decorative Stainless Steel Wire Mesh
Raw Material: Stainless Steel 201, 304, 316
Mesh Type: Rigid Architectural Wire Mesh
Opening Rate: 46%
Square Meter Weight: Approx 6kg/㎡
Finish: PVD Titanium Gold Plating
Sheet Size: Custom made.

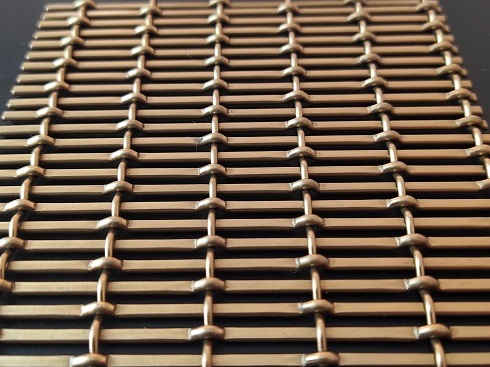

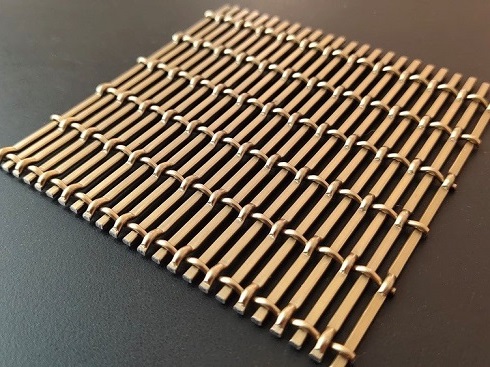

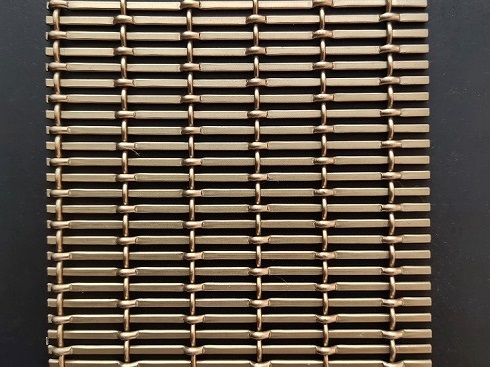

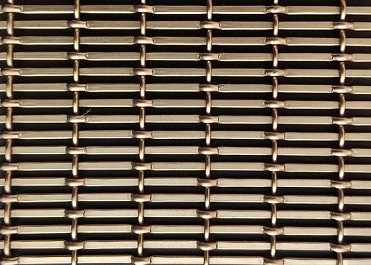

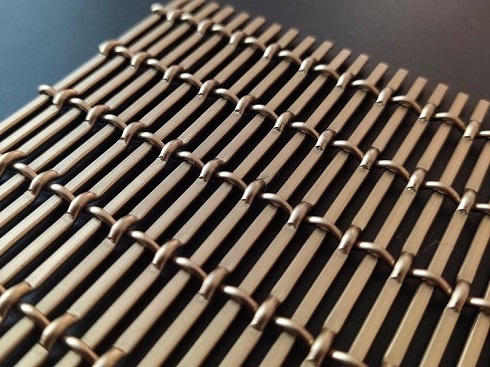

The exhibited sample is a PVD Gold Titanium plated finish of our decorative wire mesh pattern METART-WW26.
This architectural woven wire is mainly made of stainless steel including grade 304 and marine grade 316 as well as marine grade 316.
METART also provides architectural wire mesh that is made of alloy upon your request, including aluminum alloy and brass and other copper alloys, etc.
Specification Table.
|
Raw Material |
SS 201,304 or 316, Aluminum and other alloy wires. |
|
Mesh Type |
Rigid Architectural Wire mesh |
|
Wire Strip |
2.2x1.2mm |
|
Wire Rod Diameter |
1.5mm |
|
Clear Hole Size |
2x16mm |
|
Strip Pitch |
4mm |
|
Rod Pitch |
17.5mm |
|
Overall thickness of the fabric |
3.1mm |
|
Opening Rate |
46% |
|
Privacy Rate |
54% |
|
Estimated Square Meter Weight |
6kg/㎡ |
|
Finish |
vacuum titanium plated gold |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
