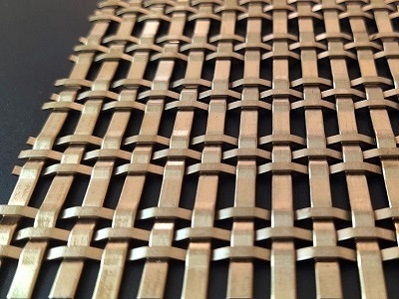

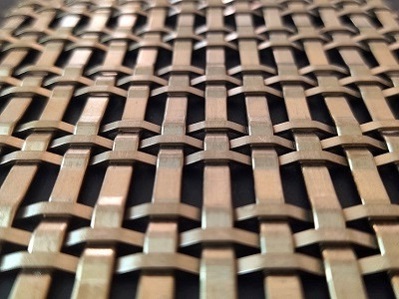

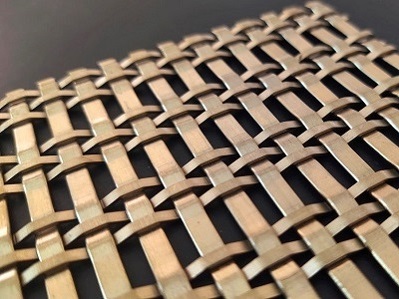

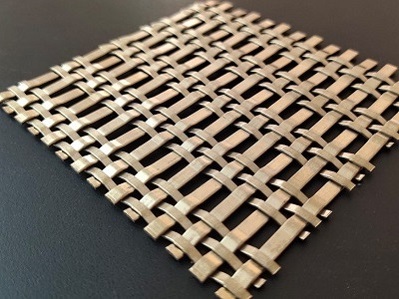

METART-WW21-41019-PVD Plated Ornamental Metal Fabric
Raw Material: Stainless Steel Grade 201,304, or 316
Mesh Type: Rigid Architectural Metal Mesh
Opening Area: 28%
Estimated Square Meter Weight: Approx 6.4kg/㎡
Finish: PVD Gold Titanium Plated
Sheet Width: Custom made.
Sheet Length: Custom made.
Specification Table.
|
Raw Material |
Stainless Steel 201,304 or 316 |
|
Mesh Type |
Rigid Architectural Metal Mesh |
|
Bigger Wire Strip (Width x thickness) |
4x1mm |
|
Smaller Wire Strip (width x thickness) |
2.2x0.8mm |
|
Bigger Strip Pitch |
7mm |
|
Smaller Strip Group Pitch |
19mm |
|
Overall thickness of the fabric |
2.1mm |
|
Opening rate |
28% |
|
Privacy Rate |
72% |
|
Estimated Square Meter Weight |
6.4kg/㎡ |
|
Finish |
PVD Titanium Plated Golden |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
